What are the advantages of 100mm thick ultra-thin concealed water tank?

The 80mm ultra-thin concealed system excels inspace optimization(≤200mm depth) for compact areas

1. Itssleek designintegrates seamlessly like hidden door handles, boosting modern aesthetics

2. Front-access maintenanceenables repairs without wall damage

3. Energy-efficient performance(70% savings) and durable materials ensure longevity

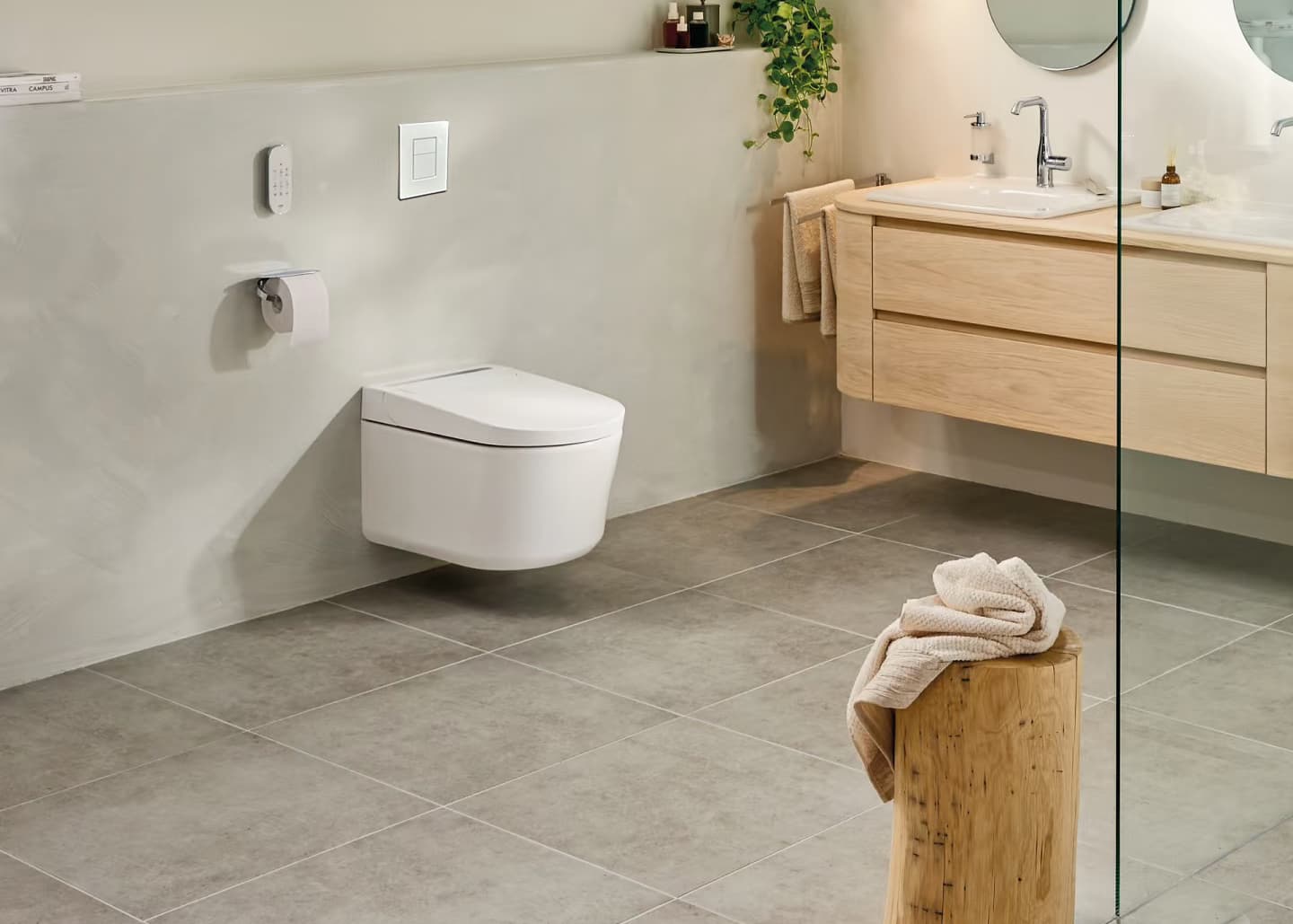

4. Ideal for smart homes and commercial spaces, it maintains structural integrity while minimizing visual clutter

Product details introduction

Product name	Pneumatic wall mounted toilet tank	Tank Color	Blue&White
Brand Name	GOWLY	Model number	GLY-901
Application	Hotel, Office Building, Hospital, School, Mall, fit for one piece toilet, Toilet	Drainage mode	P-Trap 180mm
Frame Colour	Blue, Grey, Red, White,Black……	Certification	ISO9001, CE
Panel Color	White/blue/grey……	Commercial / Residential	Commercial/Residential
Surface	Chrome	Included	Seat Cover, Flush Valve
Material	ABS & POM	Style	Minimalist,Modern
Flush Valve Type	Hand Control	Feature	full flush & half flush available
Flush speed	>2.4L/s	Flush pipe	90mm+110mm
Flushing Type	Dual Flush	Manufacturer Warranty	5 year limited warranty
Packaging cartons	Kraft paper 5-ply	Packaging Details	Carton packaging
Package Size	500x100x1112mm	Gross weight	15.8kg
Delivery time	25 days	Customizable	YES
Customizable	YES	Payment Term	T/T 30% Deposit
Total number of employees	125	Button	multiple designs of buttons for choice
Bracket bearing	400 kgs	Shipping terms	EXW, FOB Guangzhou,CIF
Place of Origin	Foshan Guangdong	Loading QTY	20GP/344sets, 40HQ/836sets
Business Type	Manufacturers	Water Supply	Connect at the top

OEM Customization Service:

The water tank bracket can be customized in different colors according to customer needs;

after obtaining brand authorization, the water tank panel and water tank foam can be printed with the customer's logo

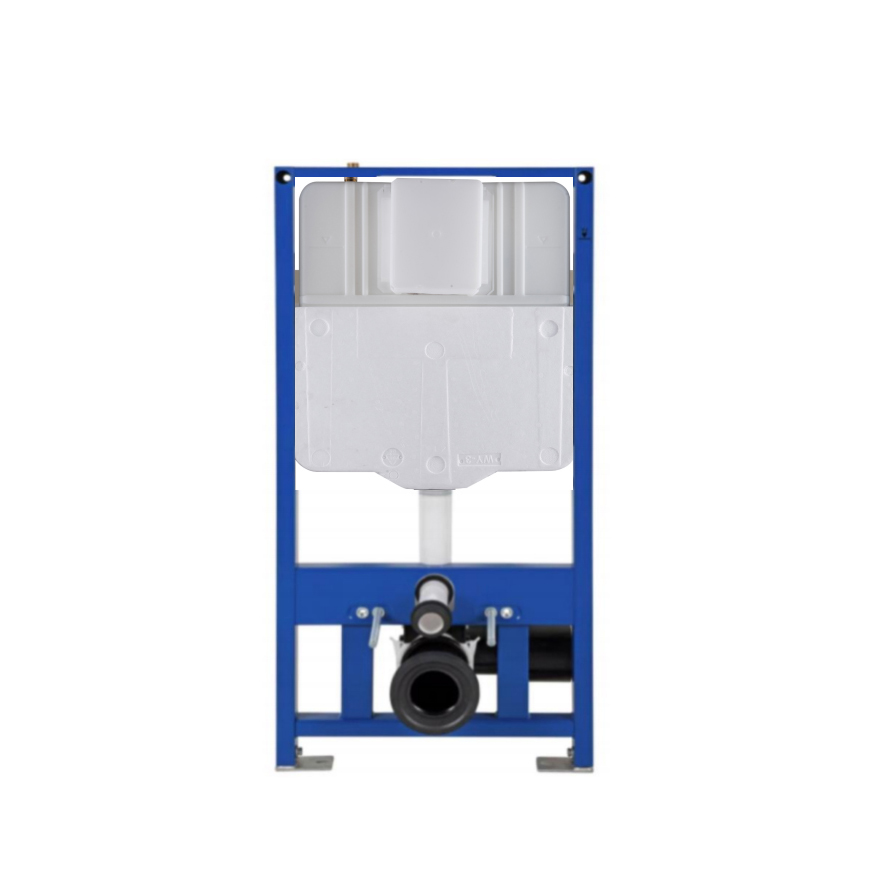

Double drainage pneumatic water tank

It adopts a double drainage design, uses new HDPE raw materials, and has silent insulation foam on the outside of the box, making flushing after using the toilet quieter;

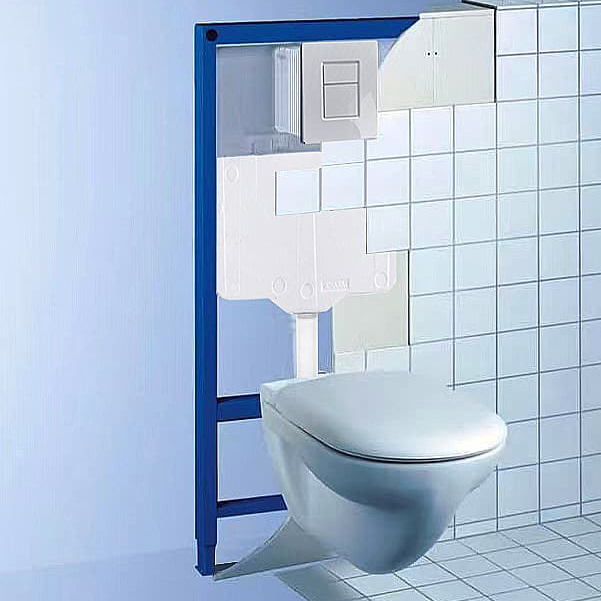

Concealed water tank is easy to install

The installation is simple, you can directly build a false wall or embed it into the wall;

The flush panel is both a flush switch and a window for repairing and replacing water parts;
Most popular gold sizes

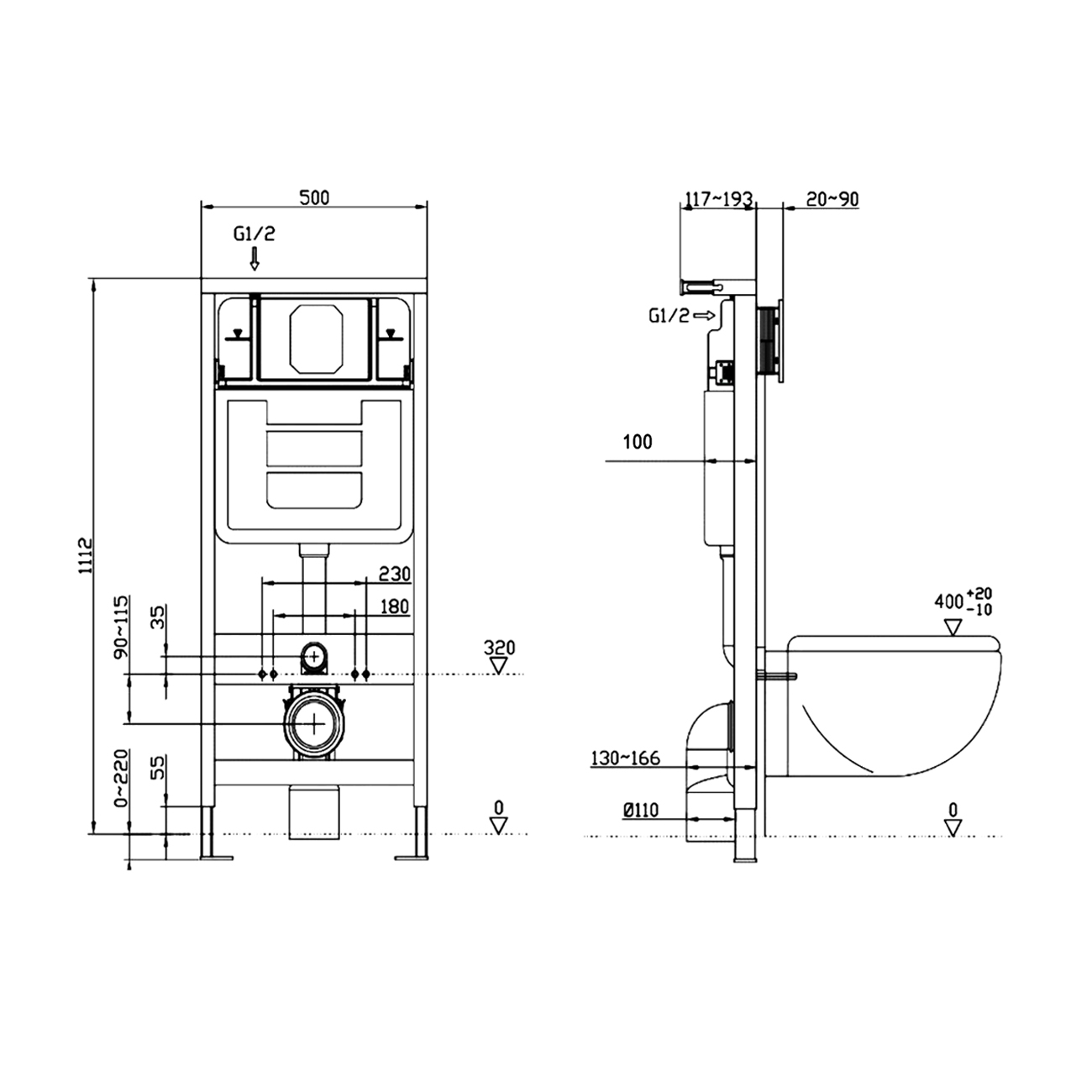

The width of the water tank is 500mm, which is the most popular golden size on the market; the thickness of the tank can be selected: 100mm\120mm;

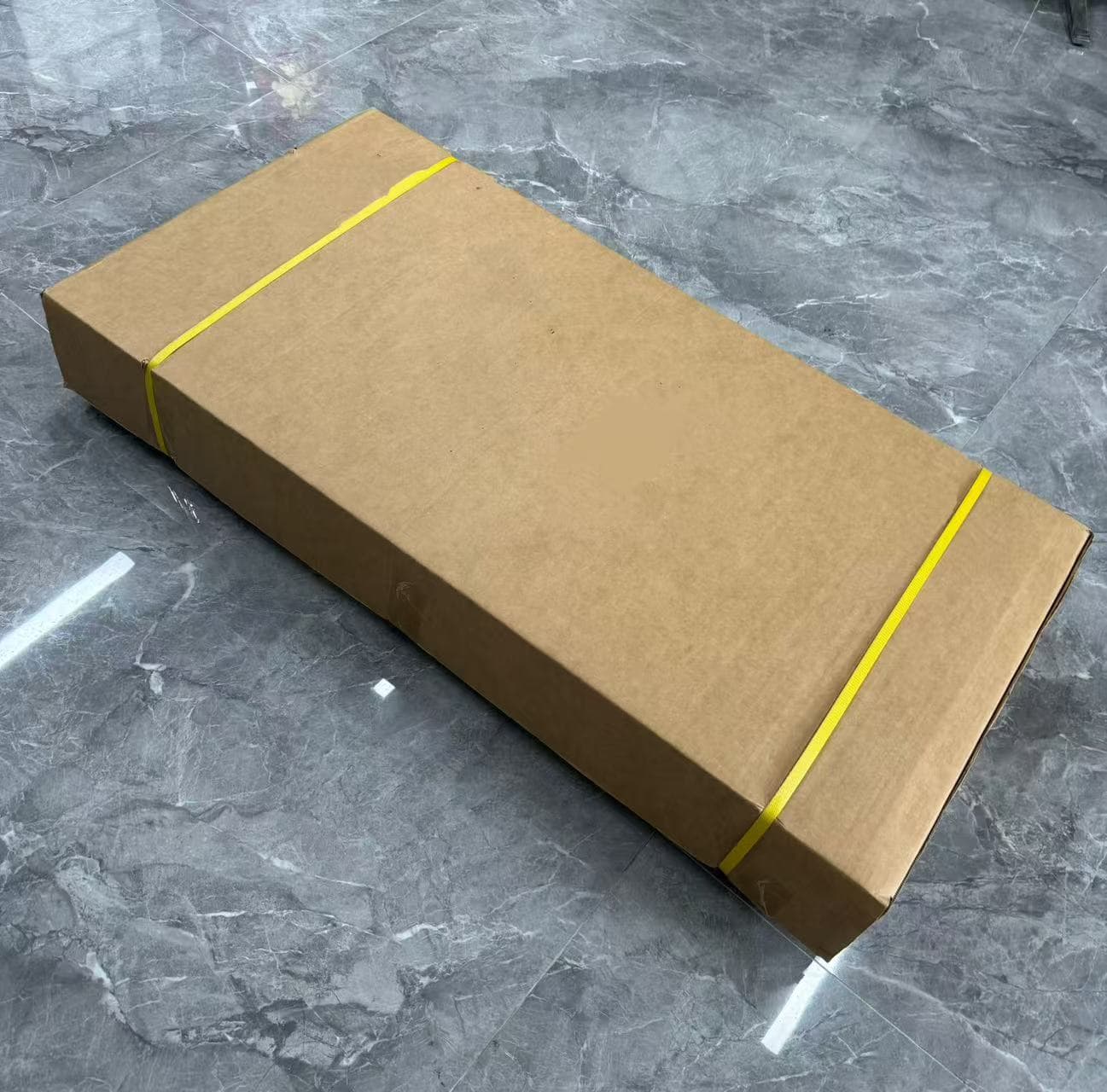

Water tank packaging

Use 5 layers of kraft paper packaging + cable ties to better protect the water tank from damage during transportation; custom printing is available;
Water tank panel color customization

Customers can choose different colors according to their preferences, such as: electroplating, black, white, gun gray, brushed gold, champagne gold...

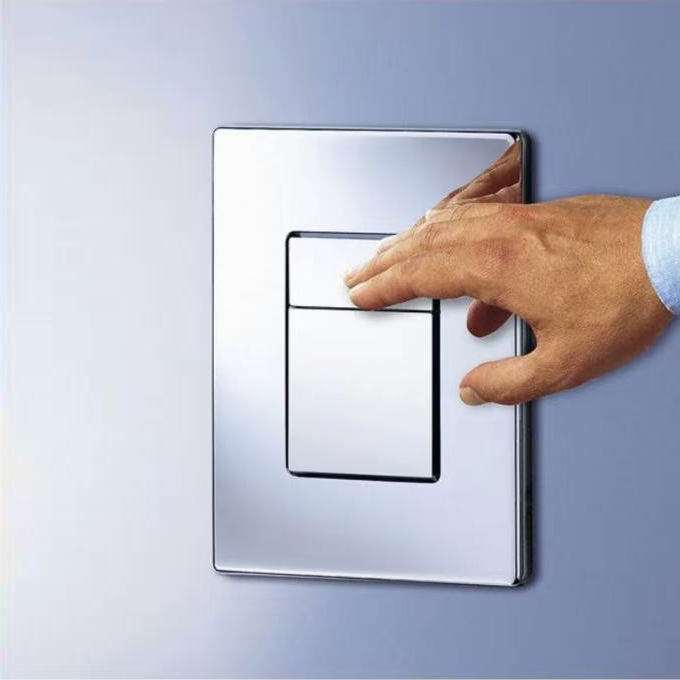

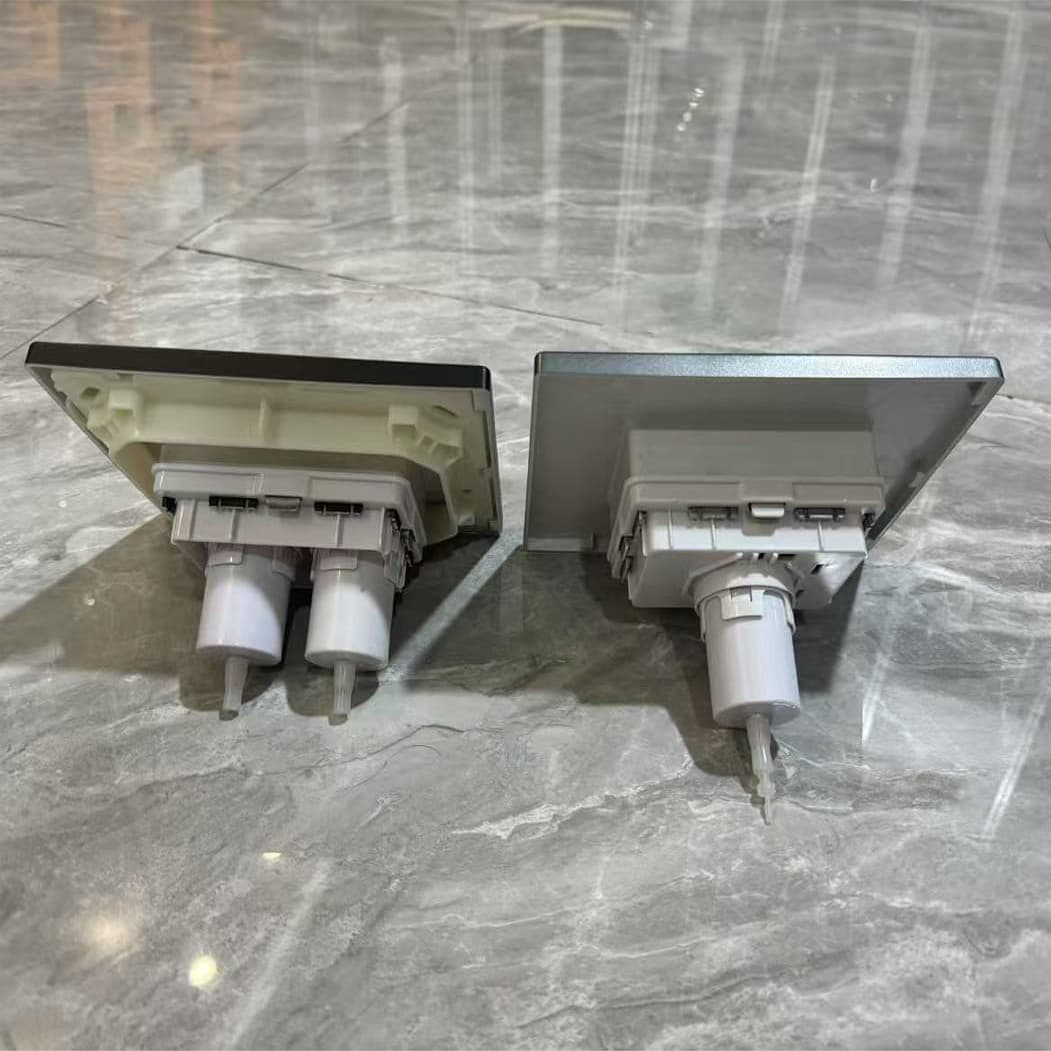

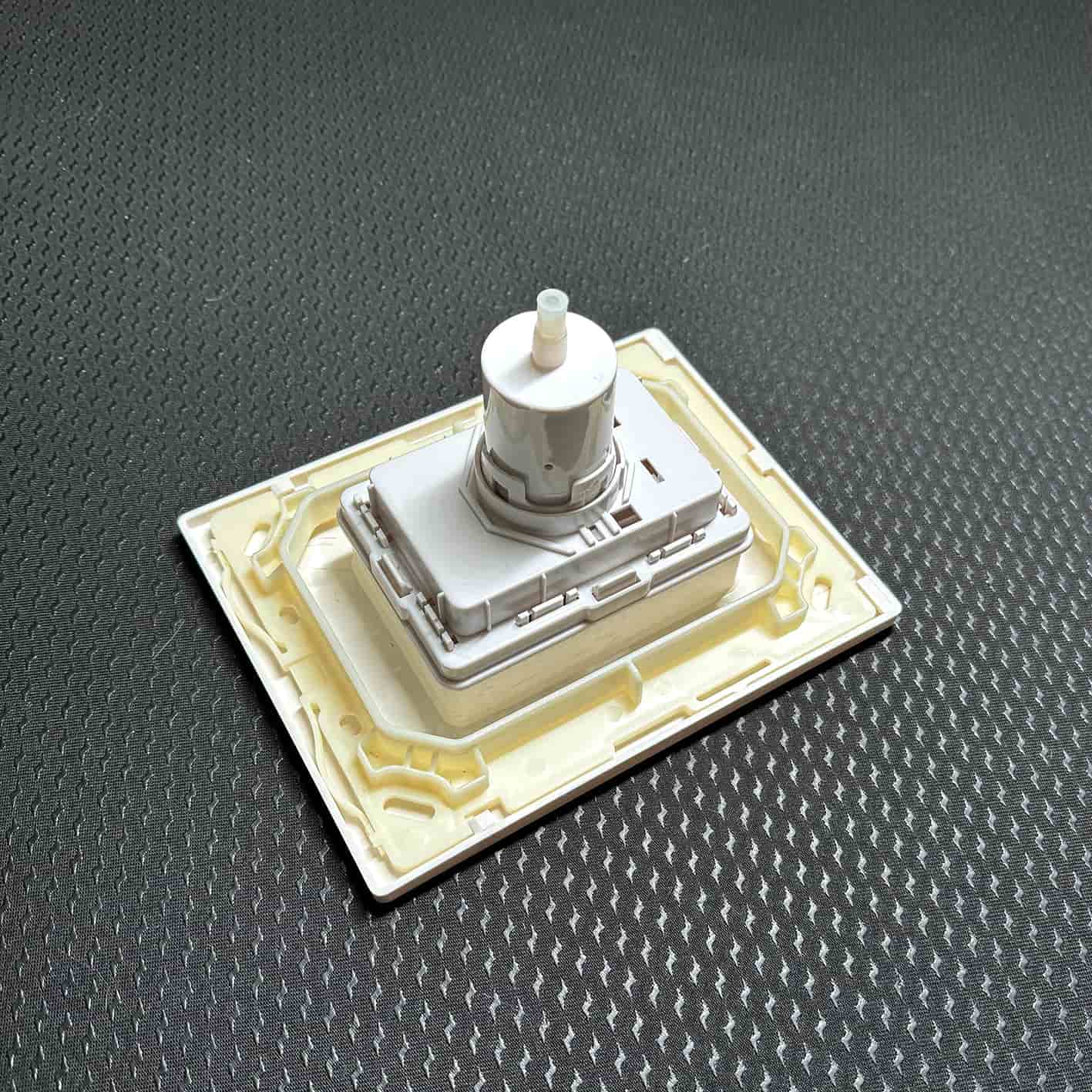

Pneumatic panel

The pneumatic panel has a better feel when pressing the flush button; the air pipe can be up to 6 meters long and can be installed horizontally or vertically, or in any position in the bathroom;

No mechanical transmission noise
The pneumatic panel relies on air pressure to trigger the flushing, and the operation is almost silent; the wall sound insulation design with hidden water tank has a comprehensive noise reduction effect far exceeding that of traditional water tanks

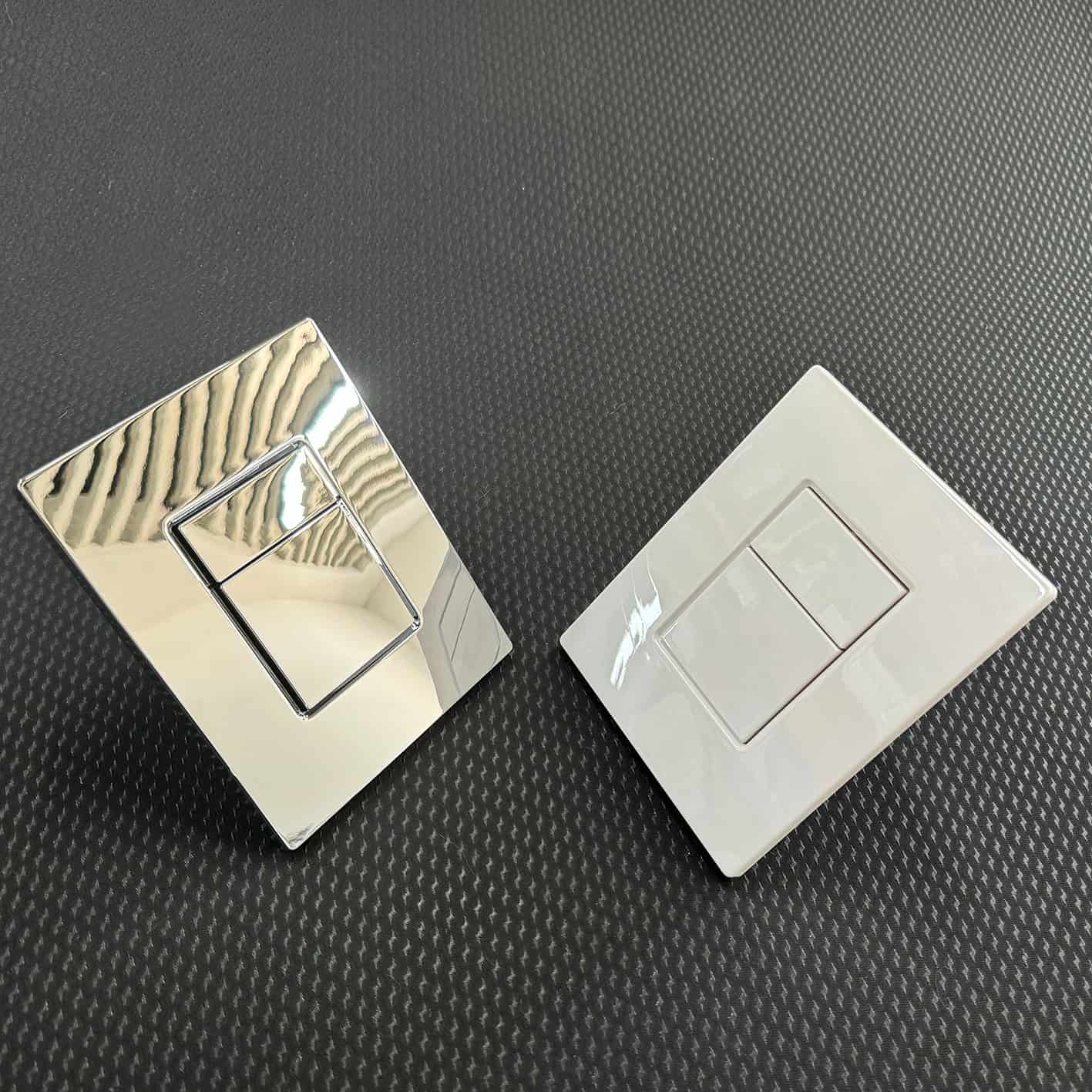

Single-button and double-button design for water tank panel

Customers can choose different flushing methods according to their preferences, including single-press and double-press;

Single-press replaces an accessory to work for Grohe water tanks;
Panel packaging

Conventional panel packaging uses thick white printing, so customers can clearly see the model and color of the panel; customized printing is also available;
