Product Details

Toilet tank without frame GLY-G58BT

High-quality components are crucial for concealed cistern systems to ensure durability, efficiency, and user satisfaction.

Valve Reliability: Inlet valves control water flow and prevent leaks. Poor-quality valves may fail to shut off properly, leading to water waste or overflow, while advanced designs like Geberit’s Typ383 inlet valve minimize noise and enhance sealing.

Drain valves determine flushing power; robust designs ensure optimal water release for effective waste removal, reducing clogs.

Material Integrity: Cisterns made from HDPE (high-density polyethylene) resist corrosion and cracking. Seamless construction eliminates leakage risks, critical for long-term performance

Durable components like float mechanisms maintain precise water levels, preventing malfunctions.

Frame-Free Concealed Toilet Cistern for Modern Bathrooms

What are the advantages of a concealed water tank without a bracket?

1. Space-saving: The concealed water tank design allows for efficient utilization of bathroom space, making it ideal for small or compact bathrooms.

2. Aesthetic appeal: Without a visible bracket, the concealed water tank offers a clean and streamlined appearance, enhancing the overall aesthetic of the bathroom.

3. Enhanced privacy: The concealed water tank provides increased privacy as it is hidden from view, creating a more private and comfortable bathroom environment.

4. Customization options: The concealed water tank can be seamlessly integrated into the bathroom design, offering flexibility for personalization and customization.

Product Information

Product name	Mechanical concealed toilet tank	Tank Color	Blue&White
Brand Name	Concealed tank/Flush water tank	Model number	GLY-G58BT
Application	Hotel, Office Building, Hospital, School, Mall, fit for one piece toilet, Toilet	Drainage mode	P-Trap 180mm
Frame Colour	Blue, Grey, Red, White,Black……	Certification	ISO9001, CE
Panel Color	White/blue/grey……	Commercial / Residential	Commercial/Residential
Surface	Chrome	Included	Seat Cover, Flush Valve
Material	ABS & POM	Style	Minimalist,Modern
Flush Valve Type	Hand Control	Feature	full flush & half flush available
Flush speed	>2.4L/s	Flush pipe	90mm
Flushing Type	Dual Flush	Manufacturer Warranty	5 year limited warranty
Packaging cartons	Kraft paper 5-ply	Packaging Details	Carton packaging
Product size	495x96x718mmmm	Gross weight	6.43kg
Package Size	645x120x600mm	Customizable	YES
Delivery time	25day	Payment Term	T/T 30% Deposit

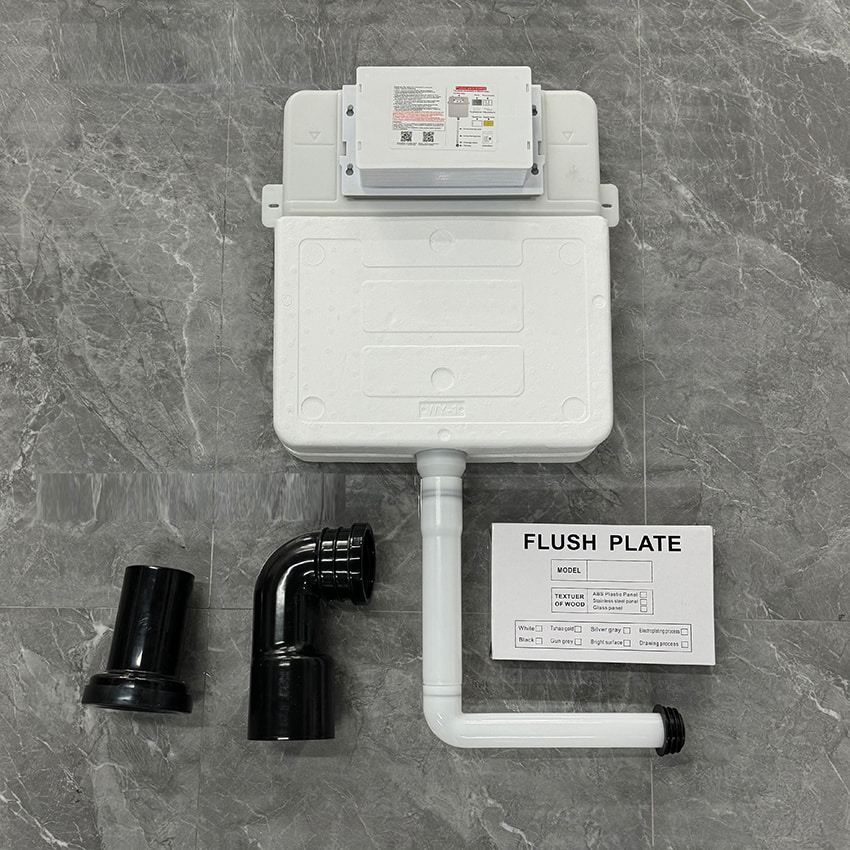

Product Details Introduction

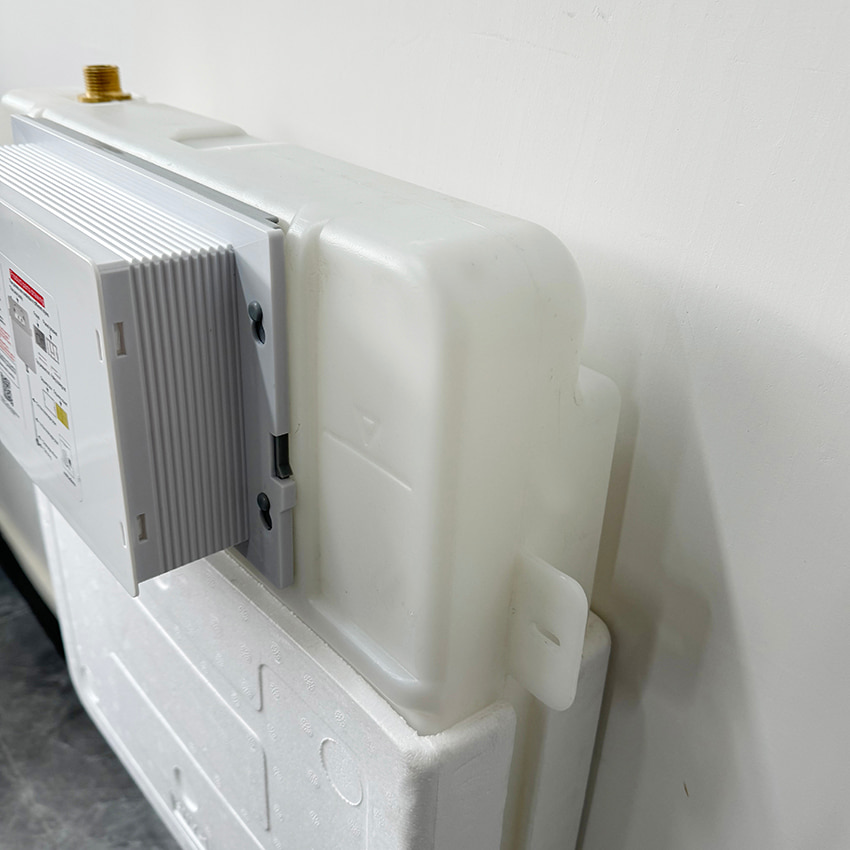

HDPE cistern body

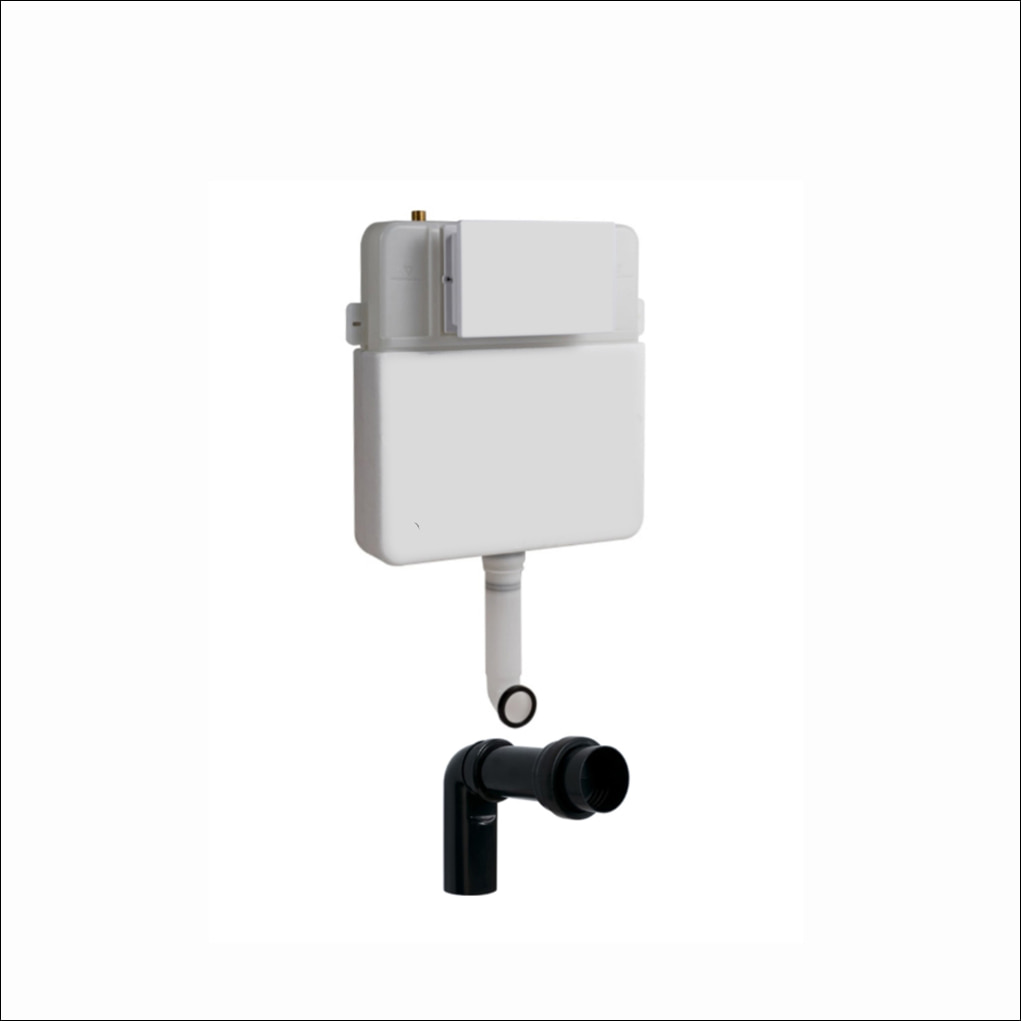

Frame-Free Concealed Toilet Cistern for Modern Bathrooms

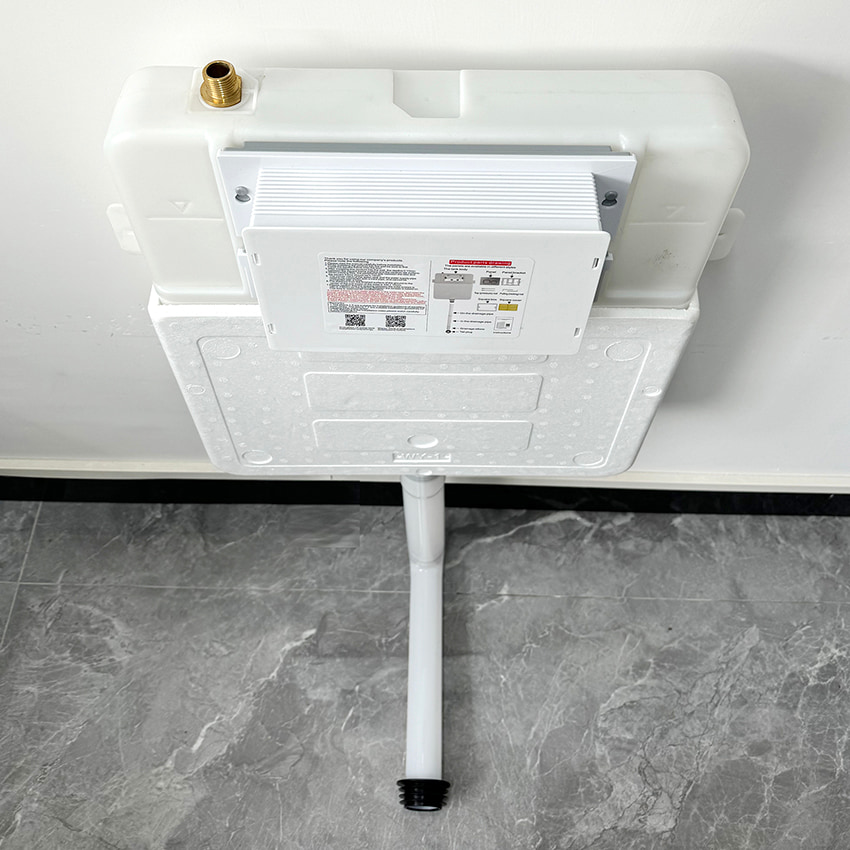

HDPE cistern body
Durable concealed cistern with easy maintenance

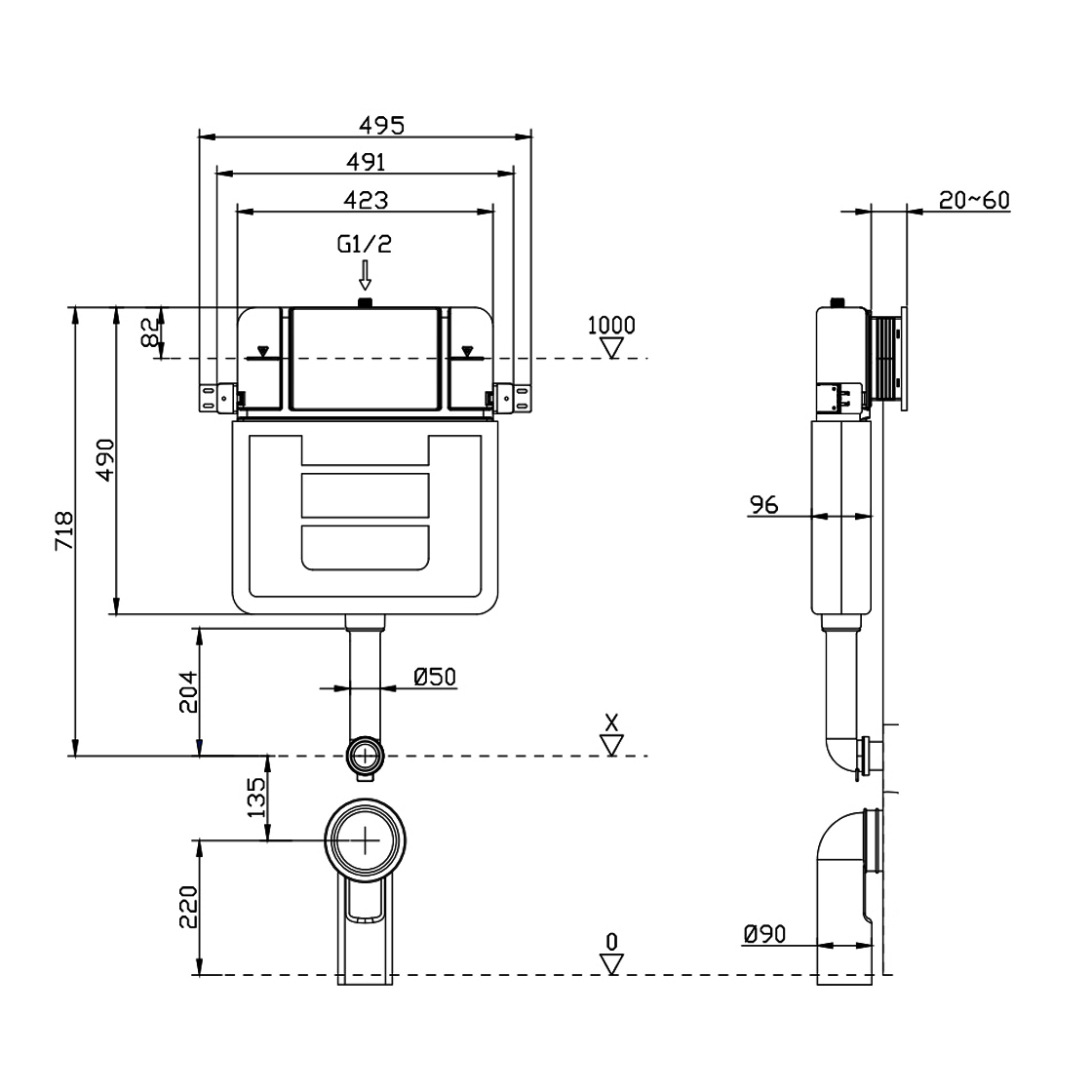

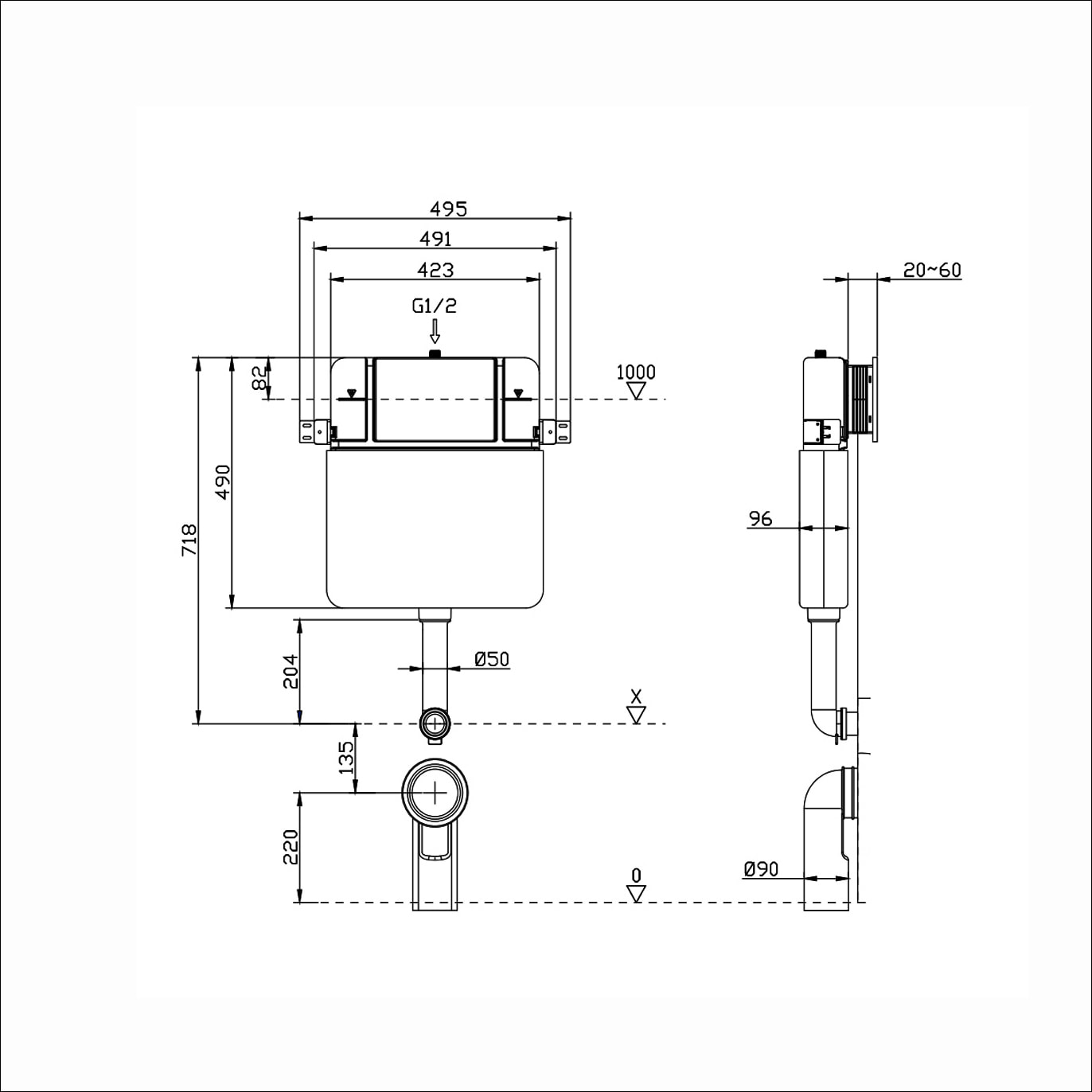

Dimensions
Elegant Concealed Cistern Without Supporting Frame

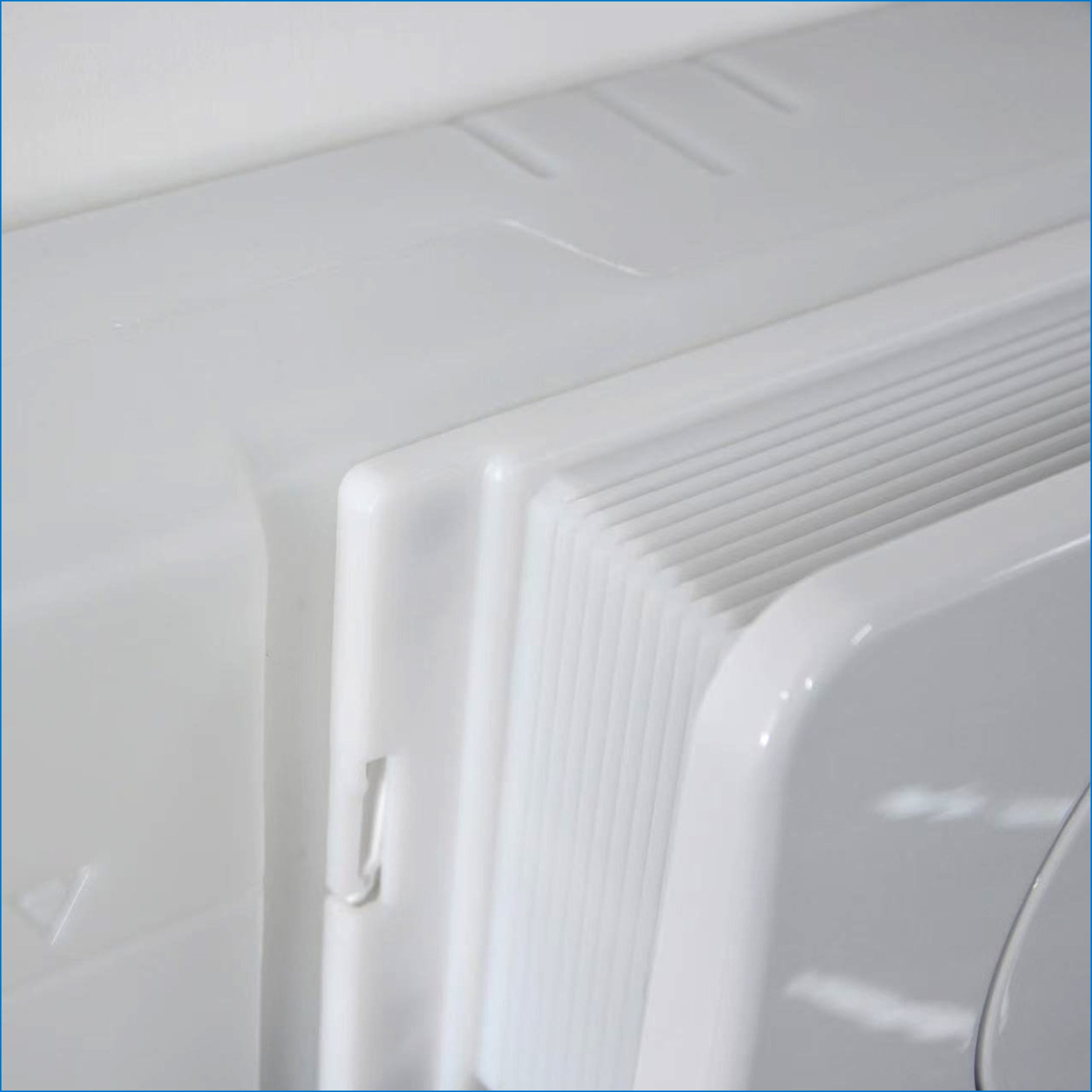

HDPE leakproof material
Made of thickened HDPE high-density polyethylene, one-piece blow molding ensures no leakage risk
Strong factory, good source of goods

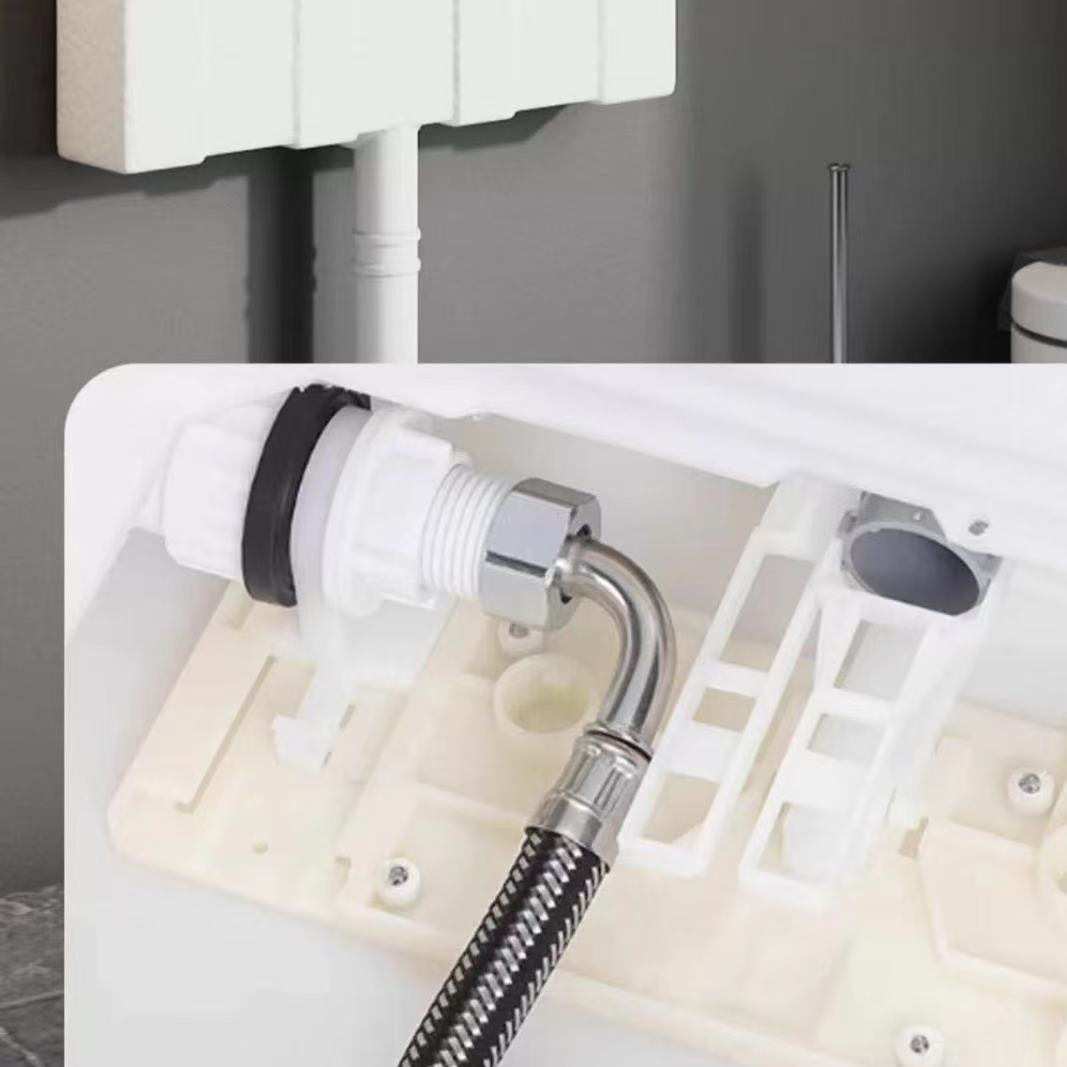

High-quality braided hose is explosion-proof and safer.
Copper accessories, exquisite choice

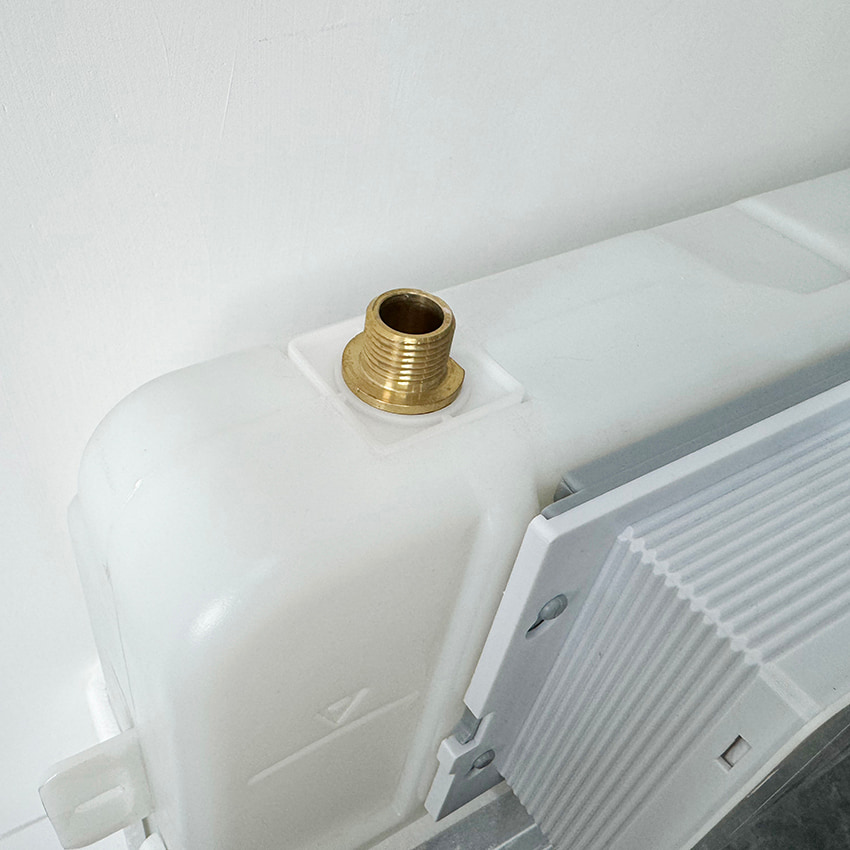

The regulating valve on the water inlet is made of all copper, which is not easy to corrode or rust. The regulating valve is designed with all copper, thickened and slow opening, which can adjust the water inlet.

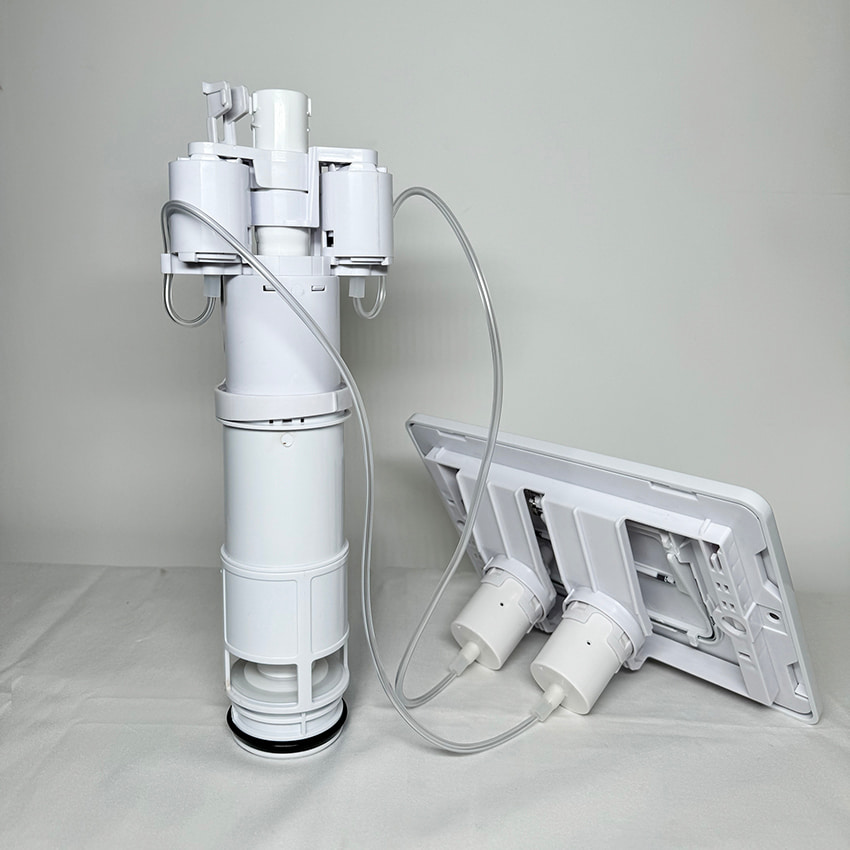

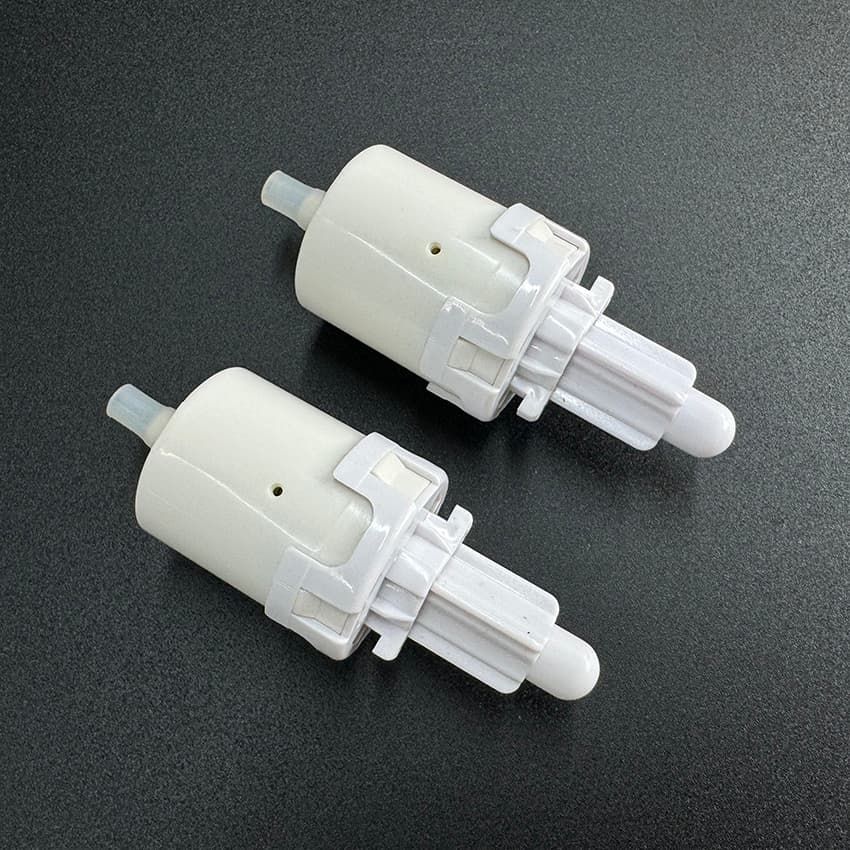

Pneumatic water tank special air pump
The product is made of ABS+POM material, which is strong and airtight
The air pump has been pressed more than 100,000 times
Built-in medical airway, passed laboratory tests, more than 100,000 can work normally

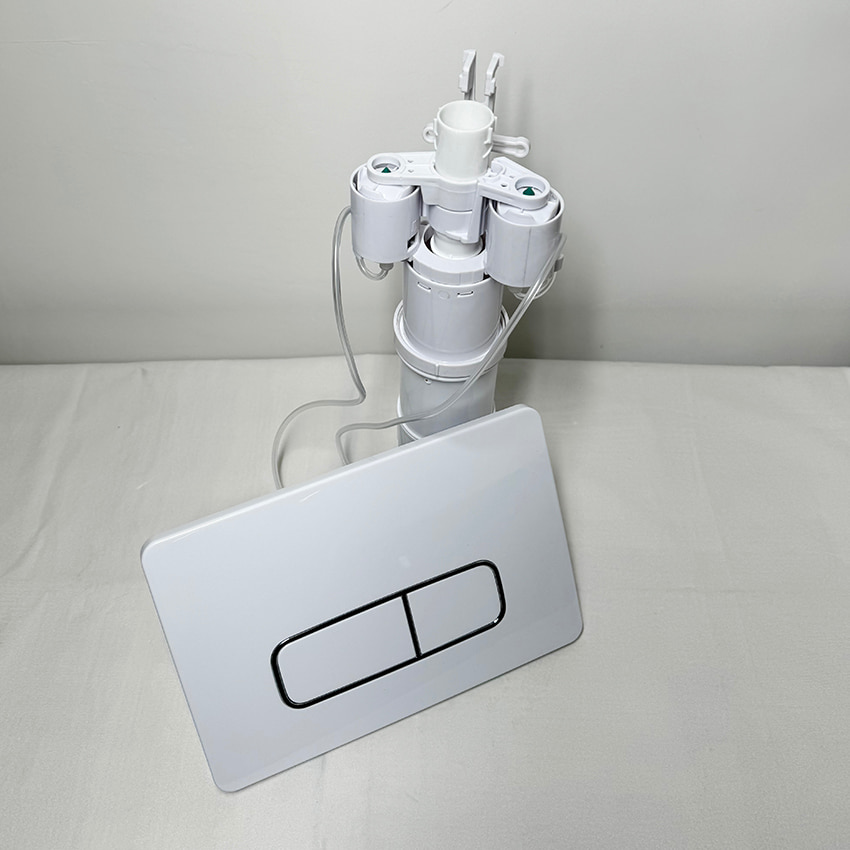

Pneumatic concealed water tank panel
The air pipe can be customized according to the length required by the customer, and the longest effective length is 6 meters

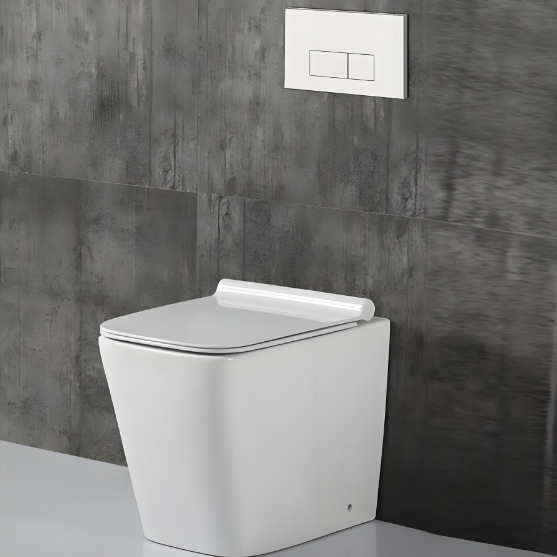

Top-rated pneumatic flush toilet panels for commercial use

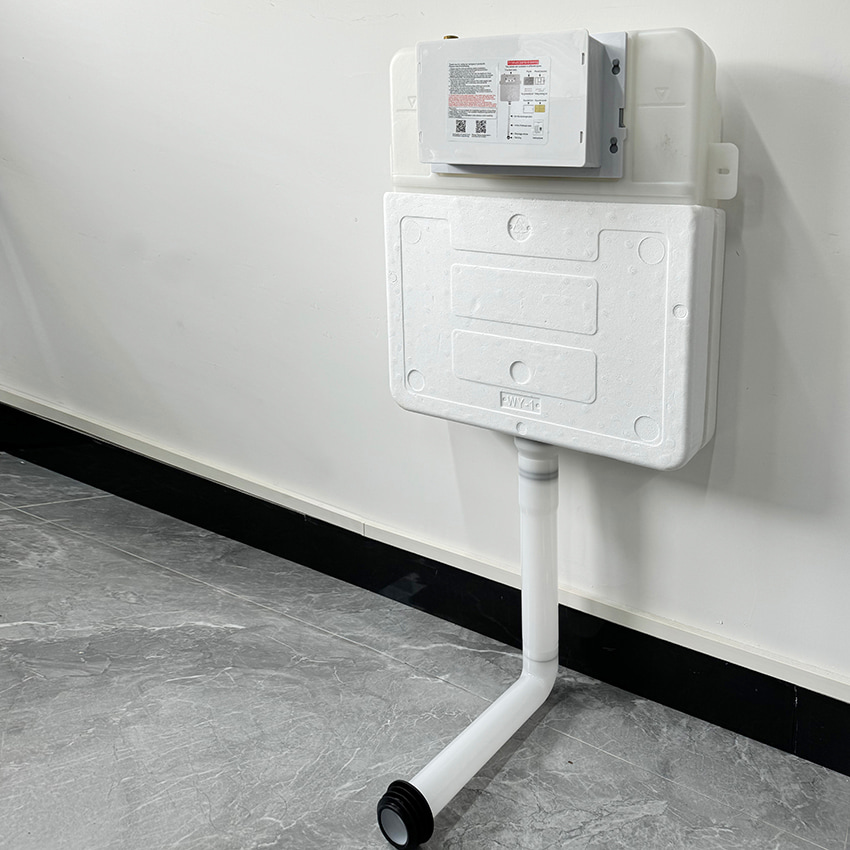

Pneumatic supportless concealed water tank

1. Thick Water Tank Body: The water tank body is made of thickened HPEF, blow-molded in one piece, ensuring no leakage risks.

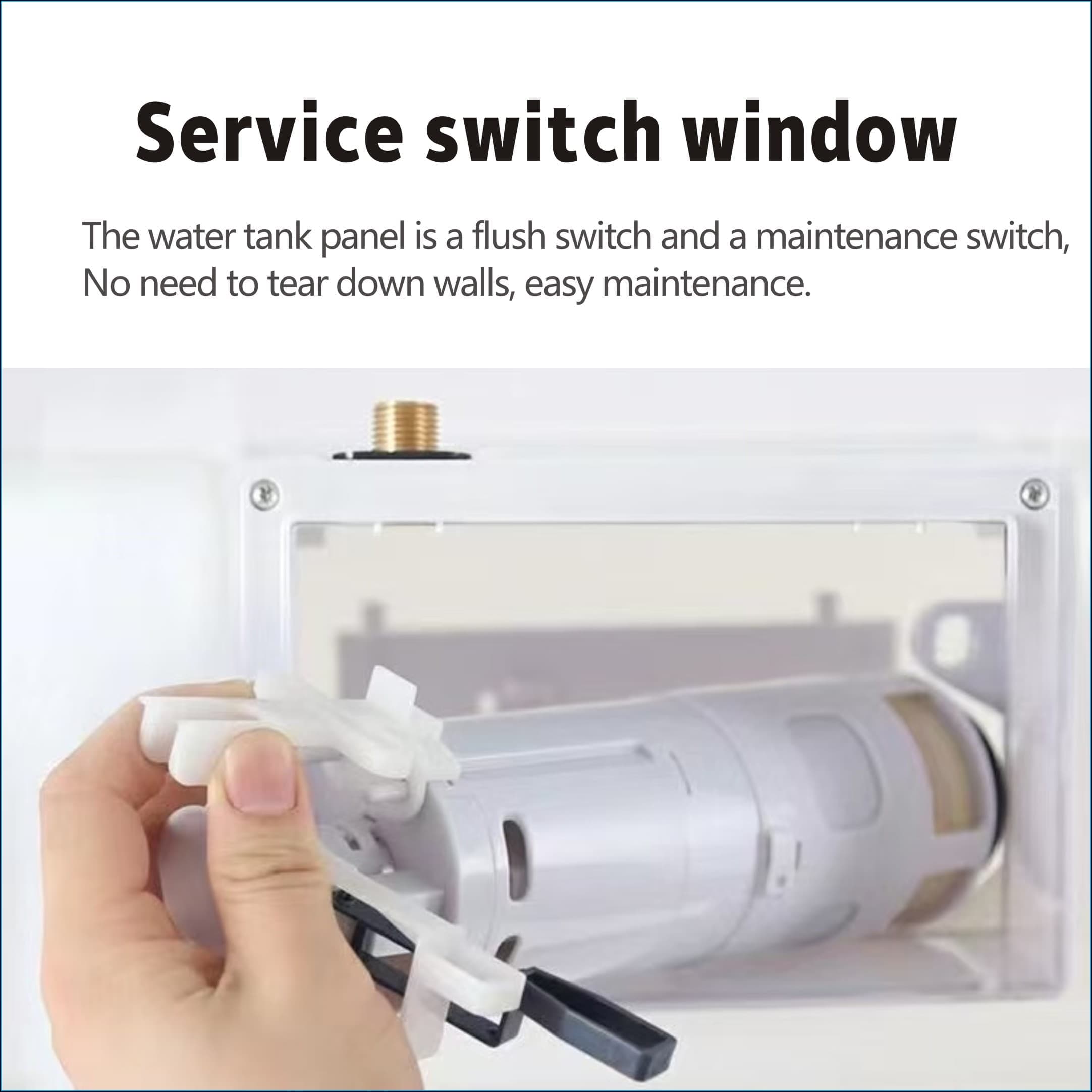

2. Quick Inspection, No Wall Removal Required: Opening the water tank control panel allows for quick inspection and repair of the internal water system and fittings without requiring wall removal.

3. Durable Product: The buttons and inlet valve have withstood over 100,000 presses and have passed laboratory testing for normal operation.

4. Water Tank Panel Switch: Made of ABS plastic, 304 stainless steel, or glass to meet the needs of different customers.

5. EPS Foam Sound Insulation: High-quality EPS foam is installed at the factory, providing insulation and soundproofing, ensuring that flushing at night will not disturb family members' rest.

Stylish pneumatic flush toilet panels for contemporary decor

Hot Tags :

Concealed Cistern Without Frame

Concealed Water Tank

Flush Plate Concealed Cistern

Concealed Cistern with pneumatic flush toilet panels
